Configuring Duo MFA
Prerequisites
-
You will need administrator access to the 7fivefive Lens Portal
-
You will need administrator access to your Duo account
Creating the Duo application
Before configuring the Lens Portal, we need to create a Duo application. This will provide us with the API credentials we need to connect via the Lens Portal.
-

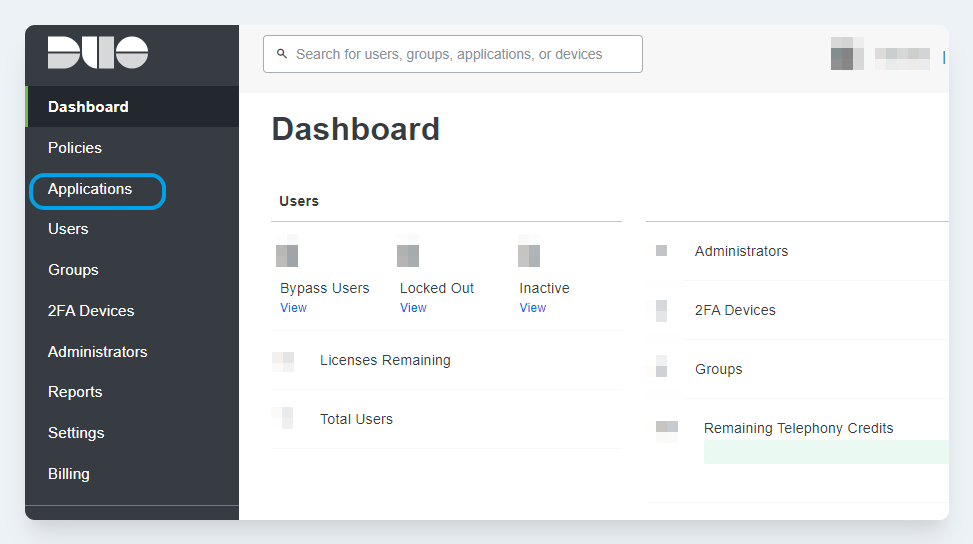

Log in to the Duo administrator dashboard
-
In the left-side menu select
Applications
-

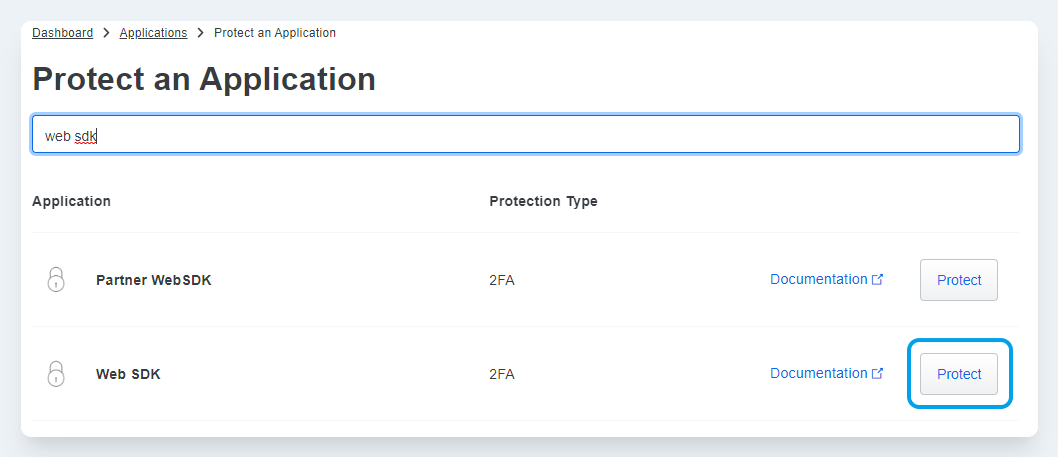

Click the
Protect an Application
button -
In the search box, enter
Web SDK
. On theWeb SDK
item, click theProtect
button
-
Make a note of the following details
-
Client ID
-
Client secret
-
API hostname
-
-
Scroll down to the
Settings
section. In theName
field enter something likeLens Portal
. This can be anything, however, it is recommended to have something that is descriptive so the application is not modified by accident in future. -

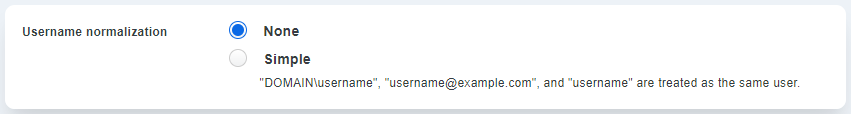

Depending on your authentication provider (AD, SAML etc) you may want to enable the
Simple
option in theUsername normalization
field. -
Click the
Save
button
Configuring the Lens Portal
-
Login to the Lens Portal. The user must have the 'Access to Settings' permission for the location where the scheduler will be enabled.
-
In the left sidebar, open the
Configuration
menu, then select theSettings
option -
Under the
Authentication
group, select theMFA
option -
Click the
Duo
tab -
Check the
Enabled
toggle -
Ensure that the Lens Portal FQDN is correct in the
7fivefive Lens public FQDN
field -
In the
Client ID
field, enter the client ID saved from the previous section -
In the
Client Secret
field, enter the client secret saved from the previous section -
In the
API Hostname
field, enter the API hostname saved from the previous section -
In the
Fail mode
selection box, choose how you want the portal to behave if it is unable to contact Duo. -
Click the
Save
button -
Confirm the connection by scrolling to the Client ID field and clicking the
Test connection
button.
