Monitoring storage

The Lens Portal makes checking the health and status of your storage easy. In one interface, you can get an overview of multiple storage devices or services. Keeping storage systems healthy is a critical part of maintaining the Lens platform and for ensuring users have a smooth, error-free experience.

Monitoring and managing volumes

Storage volumes are the top-level item that we monitor. A volume may be a storage cluster or a cloud storage service. For example, a single AWS FSx volume is a volume in Lens. A single volume can often have multiple file shares configured, allowing a volume to be used for many different workflows.

Viewing the health of a volume

Volumes will automatically be detected in the Lens platform and will be displayed without users needing to do anything.

To see the status of a volume:

1. Login to the Lens Portal

2. In the left sidebar, expand the Infrastructure menu and then select the Overview option

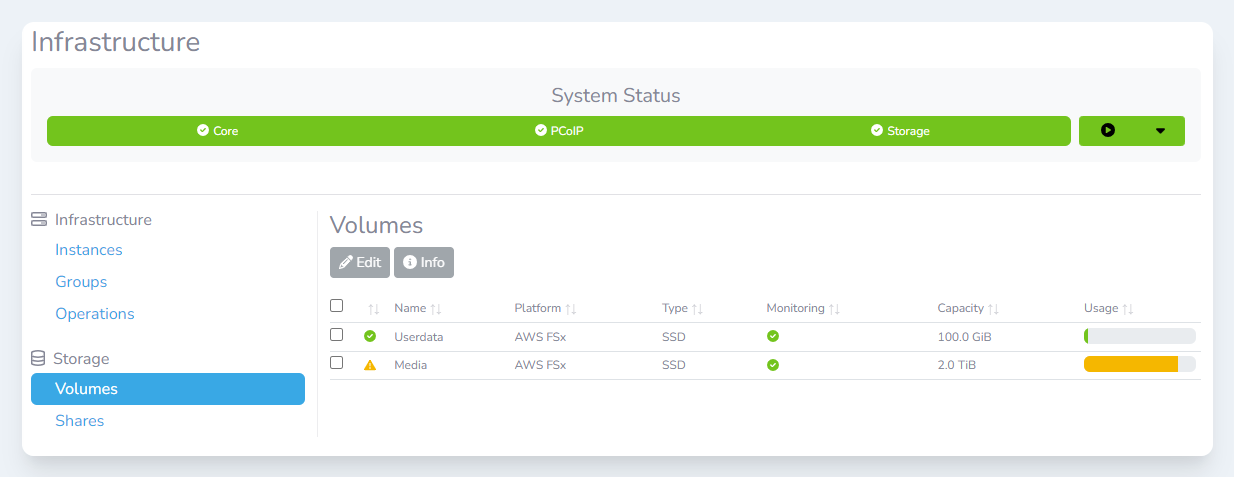

3. In the Storage section, select the Volumes option

4. Check the checkbox next to the volume you would like to monitor

5. Click the Info button

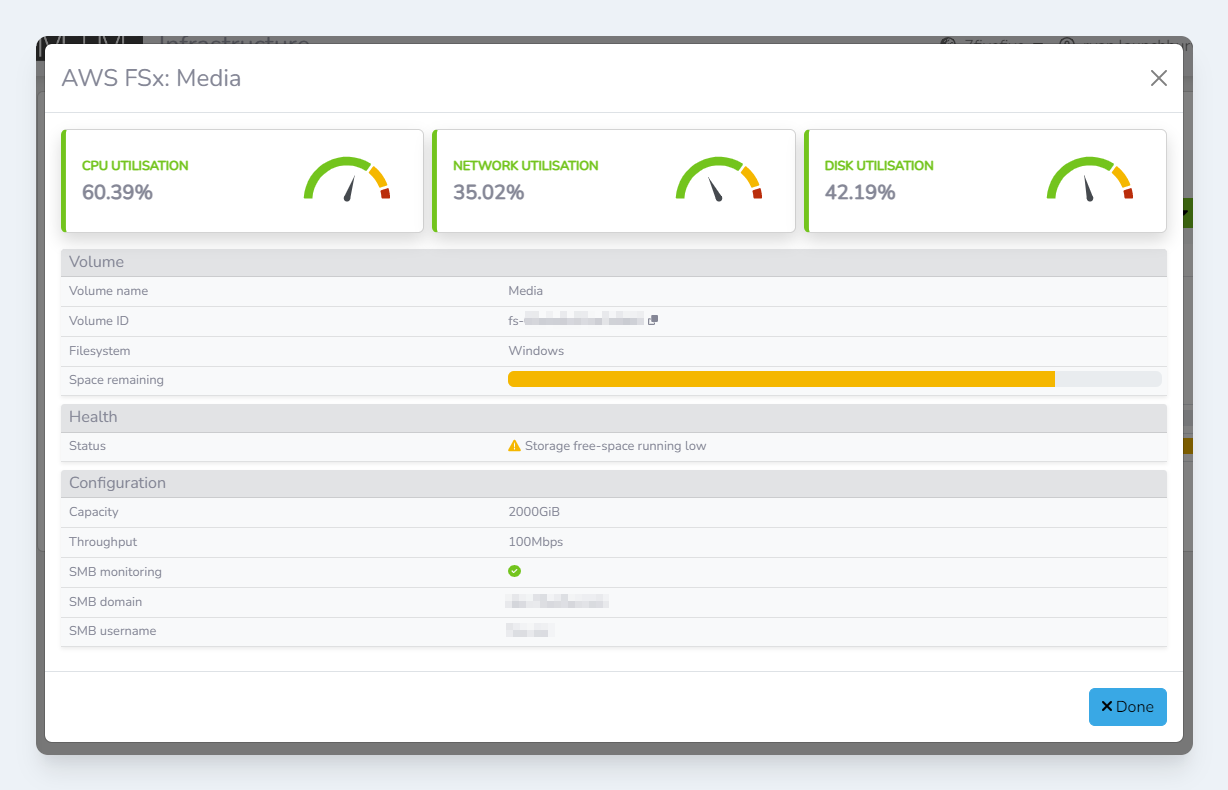

6. The volume information modal will open

7. Once you are finished click the Done button

Configuring a volume for share monitoring

The Lens Portal can query the storage system and get a list of shares, along with useful information for the top-level directories. This can be very useful for monitoring user data volumes, to know which user is consuming most of the available space. Currently, only SMB file shares are supported.

If your storage system requires credentials to be accessed, then it is highly recommended that you create a service account or user that has minimal rights that only the Lens Portal will use. This user requires the following permissions:

• List SMB shares

• Read access to any share that has monitoring enabled (To allow Lens to collect directory usage data)

To allow Lens to query the storage system:

1. Login to the Lens Portal

2. In the left sidebar, expand the Infrastructure menu and then select the Overview option

3. In the Storage section, select the Volumes option

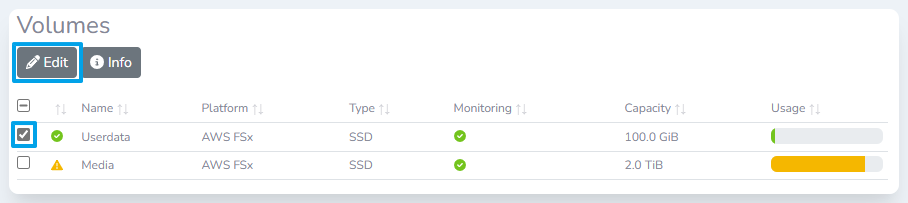

4. Check the checkbox next to the volume you would like to configure

5. Click the Edit button

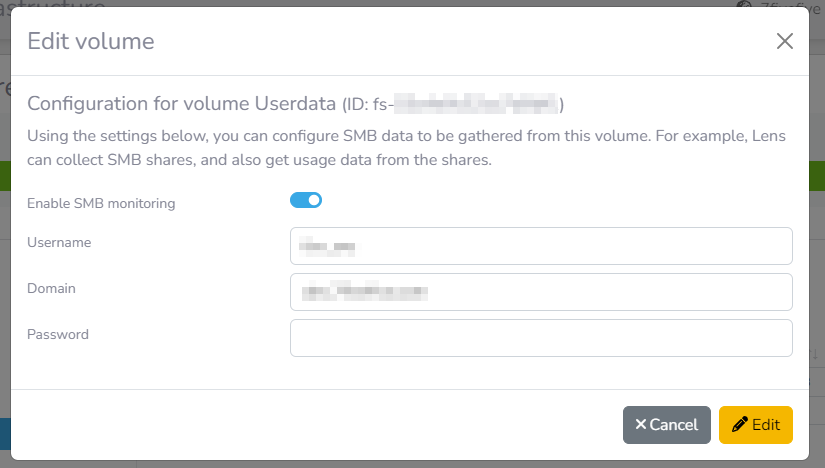

6. The Edit volume modal will appear




7. Enable the Enable SMB monitoring toggle

8. If credentials are not required, skip this step:

   1. Enter the username for the share

   2. Enter the domain name for the user (if required). This option is usually only required for systems that are bound to an Active Directory system

   3. Enter the password for the user

9. Click the Edit button

Monitoring shares

Monitoring share usage can be very helpful when diagnosing issues and offboarding users. It is possible to monitor some shares whilst not monitoring other shares.

Enabling share monitoring

1. Login to the Lens Portal

2. In the left sidebar, expand the Infrastructure menu and then select the Overview option

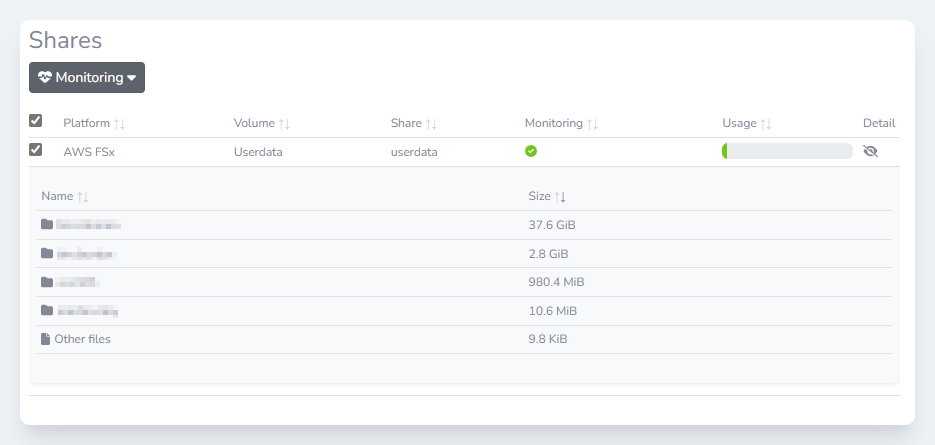

3. In the Storage section, select the Shares option

4. Check the checkbox next to the shares you would like to monitor

5. Click the Monitoring dropdown button, then select the Enable monitoring item

6. In the modal, ensure the correct shares are selected then select the Enable button

Disabling share monitoring

1. Login to the Lens Portal

2. In the left sidebar, expand the Infrastructure menu and then select the Overview option

3. In the Storage section, select the Shares option

4. Check the checkbox next to the shares you would like to modify

5. Click the Monitoring dropdown button, then select the Disable monitoring item

6. In the modal, ensure the correct shares are selected then select the Disable button
